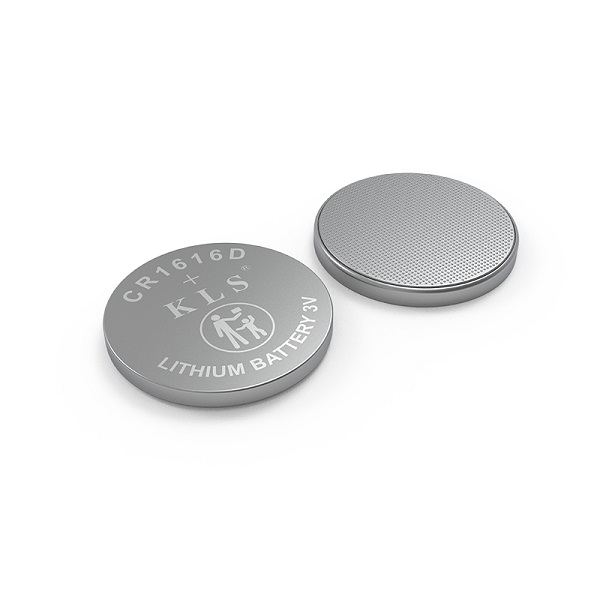

3.0 Volt - Li-MnO2 Coin Battery CR1616D
Temperature Range: -55oC ~ +60oC

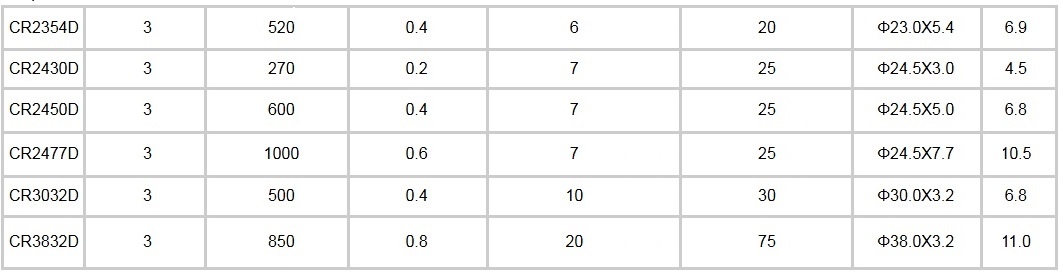

| Model |
Nominal Voltage (V) |
Nominal Capacity (mAh) |
Nominal Current (mA) |
Maximum Continuous Current (mA) |
Maximum Pluse Current (mA) |
Max Dimension (mm) |
Weight (g) |
| CR1216D |
3 |
25 |
0.1 |
2 |
5 |
Φ12.5X1.6 |
0.7 |
| CR1220D |
3 |
38 |
0.1 |
2 |
5 |
Φ12.5X2.0 |
0.8 |
| CR1225D |
3 |
50 |
0.1 |
2 |
5 |
Φ12.5X2.5 |
0.9 |
| CR1616D |
3 |
50 |
0.1 |
3 |
8 |
Φ16.0X1.6 |
1.2 |
| CR1620D |
3 |
70 |
0.1 |
3 |
8 |
Φ16.0X2.0 |
1.3 |
| CR1632D |
3 |
120 |
0.2 |
3 |
8 |
Φ16.0X3.2 |
2.0 |
| CR2016D |
3 |
80 |
0.1 |
5 |
15 |
Φ20.0X1.6 |
2.0 |
| CR2020D |
3 |
130 |
0.2 |
5 |
15 |
Φ20.0X2.0 |
2.3 |
| CR2025D |
3 |
150 |
0.2 |
5 |
15 |
Φ20.0X2.5 |
2.6 |
| CR2032D |
3 |
220 |
0.2 |
5 |
15 |
Φ20.0X3.2 |
3.2 |
| CR2320D |
3 |
130 |
0.2 |
6 |
20 |
Φ23.0X2.0 |
3.0 |
| CR2325D |
3 |
190 |
0.2 |
6 |
20 |
Φ23.0X2.5 |
3.3 |
| CR2330D |
3 |
260 |
0.2 |
6 |
20 |
Φ23.0X3.0 |
4.0
|
