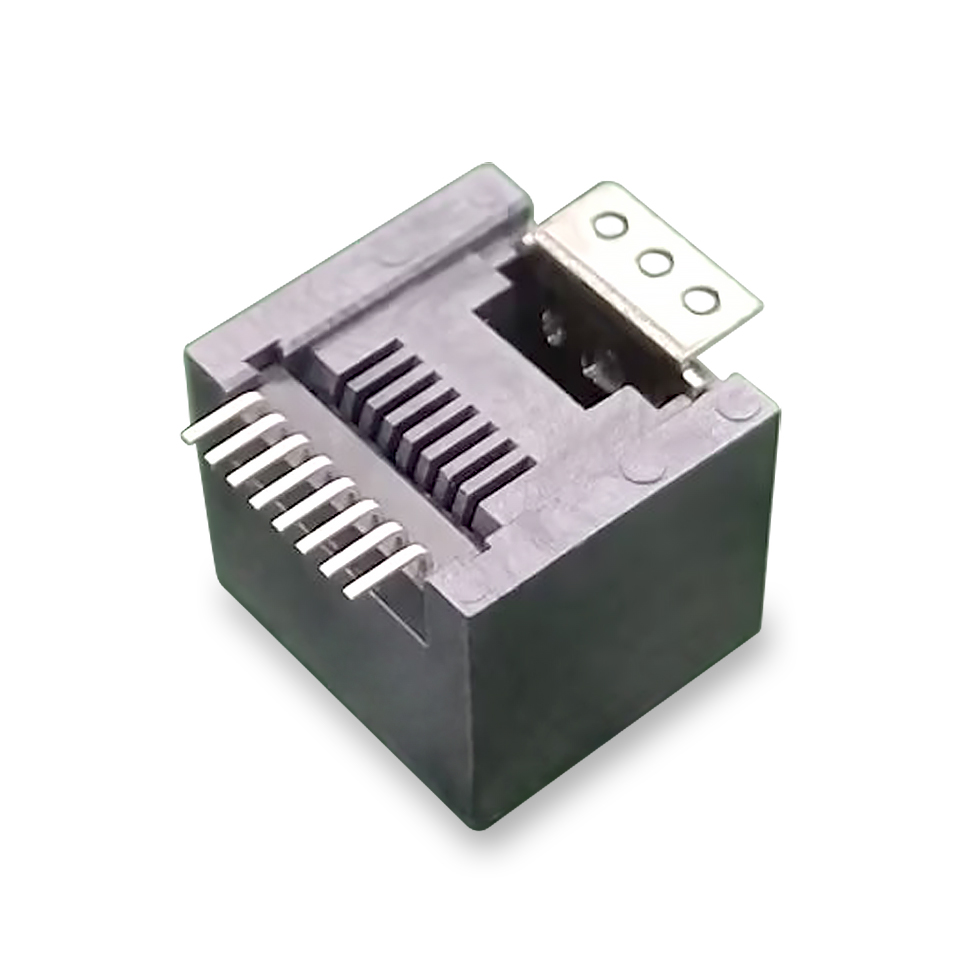

RJ45-8P8C SMD Jack Horizontal,without Shielded
Electrical:
Voltage Rating: 125VAC
Current Rating: 1.5A
Contact Resistance: 30mΩ Max.
Insulation Resistance: 1000MΩ Min. At 500V DC
Withstanding Resistance: 1000VAC RMS.50Hz 1minute
Durability: 750 cycles Min
Mating Force: 22N Max
Storage: -40℃ ~ +85℃
Operation: -40℃ ~+75℃
Materials:
Housing: Thermopastic, LCP, UL94V-0, Rated,Black
Contact: Copper Alloy,Plating 30~50u", Sn 100u"Min,
Gold Plated On Content Area 3u", T=0.30
SMT Pin: Copper Alloy,Plated Ni 30~50u", Sn 100u" Min |
