Material:
Housing: Polycarbonate, UL94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper Alloy, Hard-silver plated
Wire gauge: 0.5-4mm² (20-12 AWG)
Tightening Torque: 0.5N.m
Terminal: Spring terminal (quick connection)
Eletrical Characteris tics:
Number of contacts: 10+PE
Rated current: 16A
Rated Voltage: 500V
Rated lmpulse Voltage: 6KV
Pollution Degree: 3
Rated Voltage Acc.to UL CSA: 600V
Insulation Resistance: 1010Ω Min
Contact Resistance: 4mΩ Max
Limiting Temperatures: -40°C ~ +125°C
Mating cycles: 500 Times Min

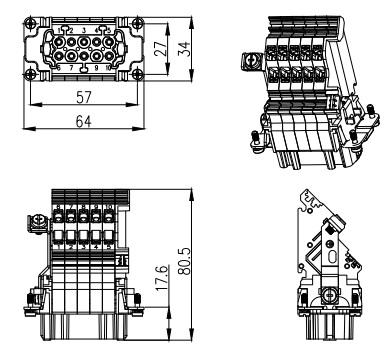

KLS1-HE-010-FQ.AV.R
--------------------------------------------------------------------

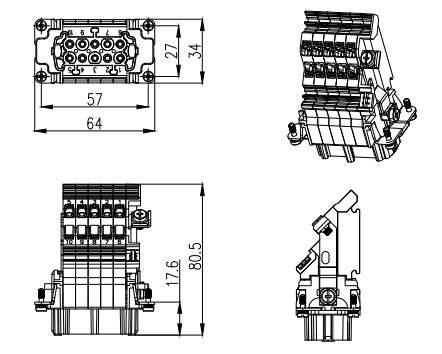

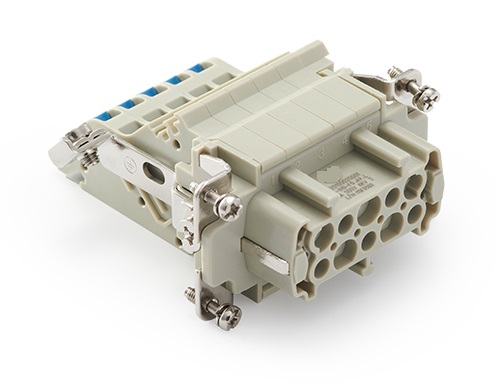

KLS1-HE-010-FQ.AV.L
|
