Male Inserts,Contacts 4+PE,Screw connection,35A 690V KLS1-HSBS-004M All Products in HSB/HSBS Inserts Series

Male Inserts,Contacts 4+PE,Screw connection,35A 690V

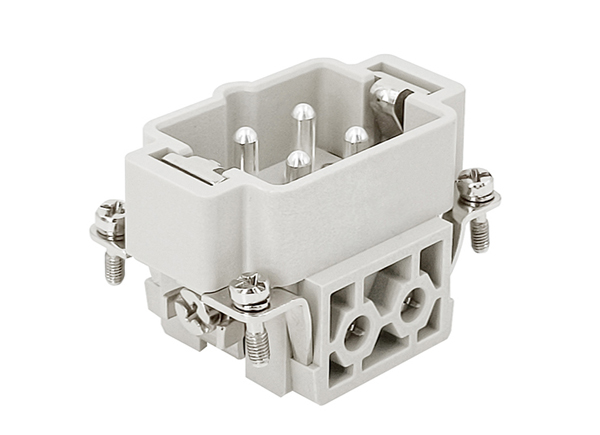

  Product Images
Male Inserts,Contacts 4+PE,Screw connection,35A 690V


  Product Information
Material:
Housing: Polycarbonate, UL 94V-0
Colour: RAL 7032 (Light grey)
Contacts: Copper Alloy, Hard-silver plated
Wire gauge:1.5-6mm² (10 AWG)
Tightening Torque: 1.2N.m
Terminal: Screw terminal

Electrical Characteristics:
Number of contacts: 4+PE
Rated Current: 35A
Rated Voltage: 690V
Rated Impulse Voltage: 6KV
Pollution Degree: 3
Rated Voltage Acc.to UL CSA: 600V
Insulation Resistance: 1010Ω Min
Contact Resistance: 1mΩ Max
Limiting Temperatures: -40℃ ~ +125°C
Mating cycles: 500 Times Min

Picture Part No. PDF Description Order Qty. Time Order
