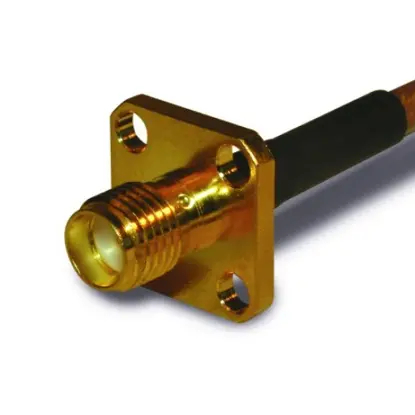

4-Hole Flange Panel Mount SMA Cable Connector Straight(Jack,Female,50Ω)
RG-316
Electrical Specifications:
Impedance: 50 Ω
Frequency Range: 0-6 GHz
Flexible cables: 0-12.4 GHz
Voltage Rating: 335 volts rms.
Dielectric Withstanding Voltage: 500 volts rms.
VSWR: 1.15 +0 .02 f (GHz) for Straight connector typical
1.25 +0 .025 f (GHz) for Right angle connector typical
Contact Resistance Center contact: 2.0 mΩ
Body: 2.0 mΩ
Insulation Resistance: 5,000 MΩ
Mechanical Specifications:
Mating: 1/4"-36 UNS thread coupling
Cable retention: 6kgf typical
Durability: 500Cycles Min.
Coupling nut retention: 18kgf Min.
Temperature Range: - 55°C to +155°C
Material:
Connector body: Brass per QQ-B-626 ,gold Plating or nickel
Center contact Male: Brass,gold Plating
Center contact Female: Beryllium copper,gold Plating
Insulator: PTFE
Gasket: Silicone rubber
Crimp Ferrule: Annealed copperElectrical Specifications:
Insertion Loss: 1-100MHZ-1.0dBMAX
Return Loss: 1-30MHZ-16.0dB MIN 30-60MHZ-14.0dB MIN 60-80MHZ-10.0dB MIN
Cross Talk: 1-30MHZ-40.0dB MIN 30-60MHZ-35.0dB MIN 60-80MHZ-30.0dB MIN
CMR: 1M-100MHZ-35dB MIN
Hi-Pot: 1500v AC 6S 1mA.
OCL: 350uH MIN & 100KHZ 100mV 8mA DC
Turn Ratio: 1CT: 1CT+/-3%
Contacts: 0.35mm thick pros bronze plated with 6u' gold in contact area
Housing Material: PBT Black
Operating temperature range: -40℃~+85℃
