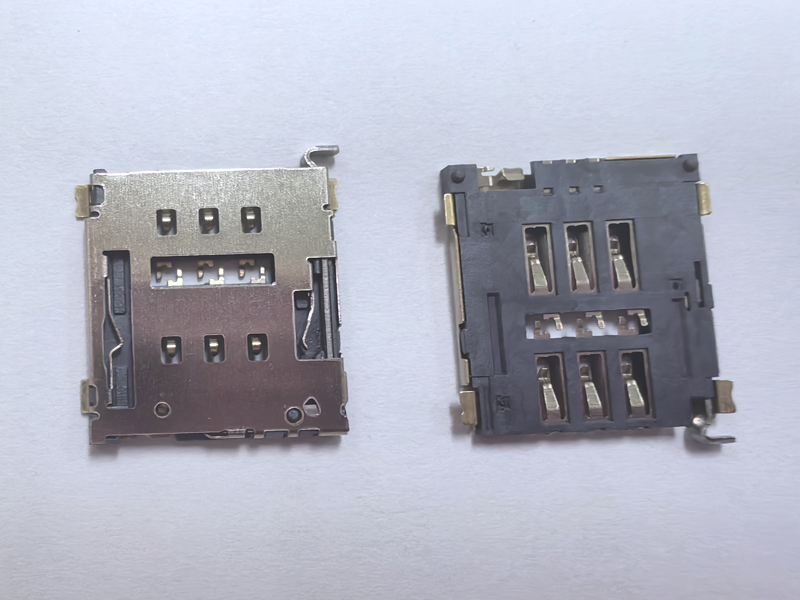

Nano SIM Card Connector,Tray type,6Pin,H1.55mm,with CD Pin
Material:
Housing: Thermoplastic, UL 94V-0.Black.
Shielded: Stainless Steel
Contact: Copper Alloy
Switch Pin: Copper Alloy
Finish:
Contact: Au Plating On Contact Area(SEE P/N Description)
50u" Min Nickel Underplating Over All
1u" Min Au Planting On Sold Area
Shielded: 1u" Min Au Plating On Secured Area
Electrical:
Voltage Rating: 50V
Current Rating: 0.5A
Contact Resistance: 100mΩ Max
Withstanding Voltage: AC 250V R.M.S
Insulation resistance: 1000MΩ Min At DC 250V
Operation Temperature: -20℃ ~ +85°C
|
